一

基本說明

備注

 Basic information

Remark

1

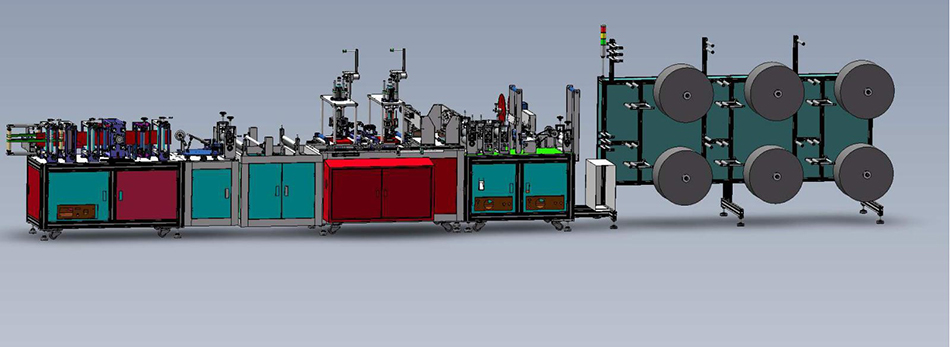

設備簡介

人員上手快，大大提高生産效率，僅需一人操 作，變頻調速該産線實現平面口罩的全自動化生産，主要包含卷材上料、折疊壓合、鼻梁筋上料、口罩成型、口罩切斷、耳帶上料及焊接、成品下料等工藝，完成從卷料原材料到口罩成品的整個生産過程。生産的口罩具有佩戴舒适，無壓迫感，口罩過濾 效果好，契合人的臉型，可适用于醫療、電子、礦業、建築等行業。

 Equipment brief introduction

Easy for operator, greatly improve production efficiency, only one operator required, frequency conversion speed regulation of the production line to achieve the full automatic production of plane masks, mainly including coil feeding, folding press, bridge rib feeding, mask molding, mask cutting, ear tape feeding and welding, finished product cutting process, complete the whole production process from raw materials to mask finished products. The mask produced has comfortable wear, no pressure, the mask filter effect is good, fit the face shape, can be used in medical, electronic, mining, construction and other industries.

2

設備重量

≤2000kg，地面承重≤500KG/sqm

Equipment weight

≤2000kg，Ground load≤500KG/sqm

3

産能

15-25隻/分鍾 (日産2萬-4萬)

Productivity

15-25Pcs/minute (20,000-40,000pcs/day)

4

電源及功率

AC220V，50Hz，約9kw

Electric and power

AC220V，50Hz，Approx 9kw

5

氣源及用量

0.5-0.8Mpa 0.038cbm/min

 Air pressure

0.5-0.8Mpa 0.038cbm/min

6

設備外形尺寸

長x寬x高 14800mm×900mm×2180mm

Overall size

LxWxH 14800mm×900mm×2180mm

7

使用環境

溫度10~35℃、濕度5-35%HR, 無可燃性、腐蝕性氣體、無粉塵(潔淨度不低于10萬級)

Use environment

Temperature 10~35℃, humidity 5-35% HR, non-flammable, corrosive gas, dust free (cleanliness not less than 100,000 class)

8

生産合格率

≥99%

來料不滿足要求、員工不當操作除外

Product qualify rate

≥99%

Except the incoming materials do not meet the requirements and the improper operation of the staff

9

設備故障率

≤2%

指設備自身所産生的故障

Equipment failure rate

Failure of the device itself

二

技術性能參數

Technical performance parameters

伺服傳動, 機架全部高強鋁型材，抗磨損；

一體化生産,僅需兩人操作,變頻調整；

高速生産,日産口罩2萬-4萬隻；

生産多種不同産品,更換模具可生産不同形狀不同規格的産品。

Servo motor drive, frame all with high strength aluminum profile, wear resistance;

Integrated production, only two persons operation, frequency conversion adjustment;

High speed production, productivity 20000-40000 masks per day;

Produce variety shapes of different mask, make replacement of molds to produce different shapes and specifications of mask.

三

其他

Others

設備出廠前調試需要需方提供物料各 1 卷

One roll of each material must be provided by buyer for machine commissioning before delivery
